- 編號：48703193
- 頻率：32.768KHz
- 尺寸：4.1x1.5x0.9mm
32.768KHz,ABS09-32.768KHZ-1-T,4115mm,Abracon晶體
32.768KHz,ABS09-32.768KHZ-1-T,4115mm,Abracon晶體,ABS09,無線應用晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS09系列，編碼為：ABS09-32.768KHZ-1-T，頻率：32.768KHz，負載：12.5pF，精度：10ppm，工作...
.jpg)
32.768KHz,ABS09-32.768KHZ-1-T,4115mm,Abracon晶體,ABS09,無線應用晶振，美國進口晶振，Abracon晶振，艾博康晶振，型號：ABS09系列，編碼為：ABS09-32.768KHZ-1-T，頻率：32.768KHz，負載：12.5pF，精度：±10ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：4.1x1.5x0.9mm，兩腳貼片晶振，石英晶振，無源晶振，鐘表晶振，手表晶體，SMD晶振，石英晶體諧振器，具有超小型，輕薄型，高品質，高質量，耐熱及耐環境特點。廣泛應用于：測量設備晶振，通信設備晶振，無線通信，商業和工業應用等。
32.768KHz,ABS09-32.768KHZ-1-T,4115mm,Abracon晶體,ABS09,無線應用晶振，產品特點：
•0.9mm高，非常適合高密度電路板
•小型SMD晶體中的低頻
•小型SMD晶體中的低頻
•陶瓷包裝提供卓越的環境和耐熱性
•用于工業應用的-40°C至+85°C
.jpg)
32.768KHz,ABS09-32.768KHZ-1-T,4115mm,Abracon晶體,ABS09,無線應用晶振,參數表
| Parameter | Specification |
| Nominal frequency: | 32.768 kHz |
| Operating temperature: | - 40° C to + 85°C |
| Turn-over temperature: | +25° C ± 5° C |
| Storage temperature: | - 55° C to + 125°C |
| Frequency tolerance: | ± 20 ppm max. |
| Temperature coefficient: | - 0.034±0.006 ppm/T² |
| Equivalent series resistance: | 70 kohms max. |
| Load capacitance CL: | 12.5 pF (see options) |
| Drive level: | 1.0 µW max. |
| Aging @ 25° C first year: | ± 5 ppm max. |
| Insulation resistance: | 500Mohms with 100Vdc ± 15V |
| Shunt capacitance C0: | 1.0pF typ. |
| Motional capacitance C1: | 2.0fF typ. |

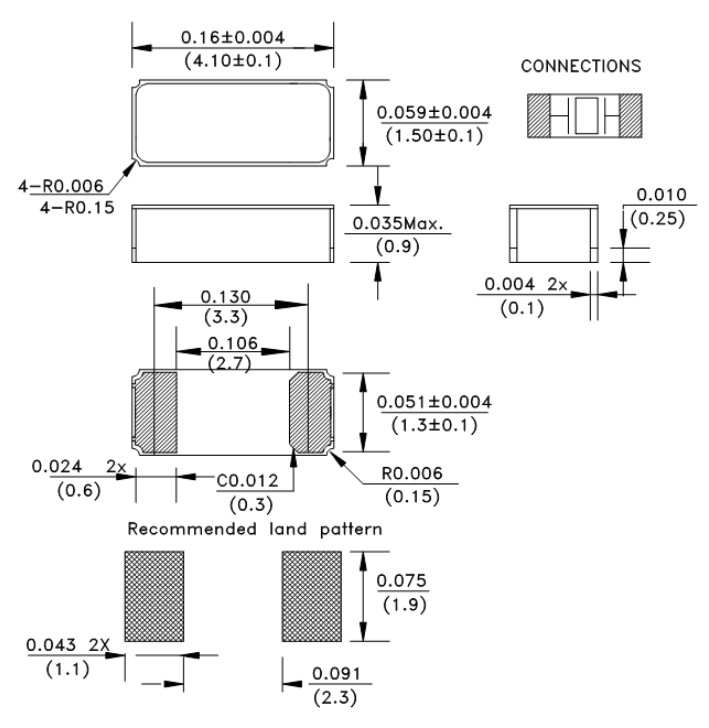

32.768KHz,ABS09-32.768KHZ-1-T,4115mm,Abracon晶體,ABS09,無線應用晶振,尺寸圖
| 原廠編碼 | 進口晶振 | 型號 | 頻率 | 包裝/封裝 |
| ABS07-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-120-32.768KHZ-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS13-32.768KHZ-T | Abracon艾博康 | ABS13 | 32.768kHz | 4-SMD, Flat Lead, 3 Leads |
| ABS07-32.768KHZ-7-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | 音叉晶振 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon艾博康 | ABS07L | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-D-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon艾博康 | ABS06L | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon艾博康 | ABS07-LR | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon艾博康 | ABS07 | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon艾博康 | ABS07AIG | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon艾博康 | ABS05 | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon艾博康 | ABS10 | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon艾博康 | ABS09 | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon艾博康 | ABS06 | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon艾博康 | ABS07W | 32.768kHz | 2-SMD, No Lead |
