石英晶體振蕩器
- 編號：81181926
- 頻率：27MHZ
- 尺寸：2.0*1.6mm
27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm
27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm,尺寸為2016mm,頻率為27MHZ，愛普生進口晶振，無源晶體，石英晶體諧振器，水晶振動子，無源貼片晶振，高質量晶振，低損耗晶振，石英水晶振子，可穿戴晶振，小型...
TXC,NDK,希華.jpg)
27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm,尺寸為2016mm,頻率為27MHZ，愛普生進口晶振，無源晶體，石英晶體諧振器，水晶振動子，無源貼片晶振，高質量晶振，低損耗晶振，石英水晶振子，可穿戴晶振，小型通信專用晶振，F(xiàn)A-128已經作為通信模塊的參考時鐘商業化，它需要高精度，作為無線通信的時鐘，以及需要微型化應用的微計算機（TWS（真無線立體聲）、智能手表等）。使用多年培養的元素加工技術創建的產品有助于提高客戶系統的性能。進口晶振產品主要應用范圍：小型通信模塊為消費和工業應用的可穿戴設備時鐘為單片機.27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm.
格發TXC,NDK,希華.jpg)
27MHZ/Q22FA12800070數據手冊/FA-128/可穿戴設備/2016mm 參數表
|
愛普生晶振 |
單位 |
FA-128晶振 |
石英晶振基本條件 |
|
標準頻率 |
f_nom |
27MHZ |
標準頻率 |
|
儲存溫度 |
T_stg |
-40°C ～ +125°C |
裸存 |
|
工作溫度 |
T_use |
-40°C ～ +85°C |
標準溫度 |
|
激勵功率 |
DL |
200μW Max. |
推薦:1μW ～ 100μW |
|
頻率公差 |
f_— l |
±50 × 10-6 (標準),
(±15 × 10-6 ～ ±50 × 10-6 可用)
|
+25°C 對于超出標準的規格說明,
請聯系我們以便獲取相關的信息, http://www.ike-digital.com/
|
|
頻率溫度特征 |
f_tem |
±30 × 10-6/-20°C ～ +70°C |
超出標準的規格請聯系我們. |
|
負載電容 |
CL |
6PF |
不同負載電容要求,請聯系我們. |
|
串聯電阻(ESR) |
R1 |
如下表所示 |
-40°C — +85°C, DL = 100μW |
|
頻率老化 |
f_age |
±5 × 10-6 / year Max. |
+25°C,第一年 |

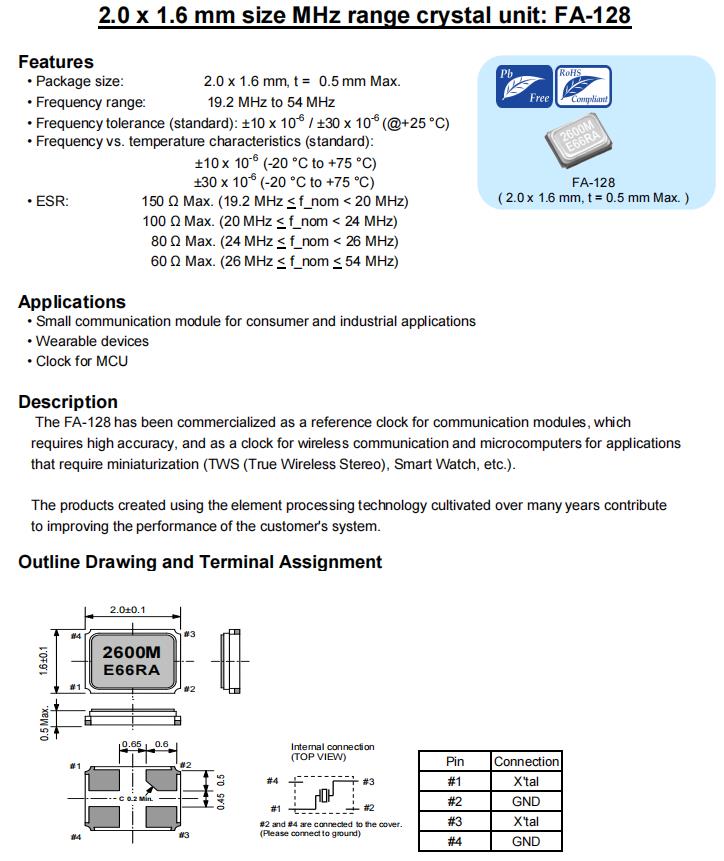

Q22FA12800070晶振 特點
包裝尺寸:2.0x1.6mm, t=0.5mmMax。
•頻率范圍:19.2MHz至54MHz
•頻率公差(標準):±10x10-6/±30x10-6(@+25°C)
•頻率與溫度特性(標準):
±10×10-6(-20°C至+75°C)
±30×10-6(-20°C至+75°C)
•ESR: 150Ω最大。(19.2 MHz< f_nom<20MHz)
100ΩMax。(20mhz< f_nom< 24mhz)
80ΩMax。(24 MHz< f_nom< 26MHz)
60ΩMax。(26 MHz< f_nom< 54MHz)
| 編碼 | 尺寸 | 型號 | 頻率 | 負載 | 頻率 @+25°C | 工作溫度 |
| Q22FA12800038 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-50 ppm | -20 to +75 °C |
| Q22FA12800043 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800044 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 16 pF | +/-15 ppm | -40 to +85 °C |
| Q22FA12800045 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 8.5 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800047 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 12 pF | +/-10 ppm | -20 to +85 °C |
| Q22FA12800053 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12 pF | +/-10 ppm | -20 to +70 °C |
| Q22FA12800054 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 8 pF | +/-10 ppm | -20 to +70 °C |
| Q22FA12800061 | 2 x 1.6 x 0.5mm | FA-128 | 44.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800062 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 8 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA12800064 | 2 x 1.6 x 0.5mm | FA-128 | 37.400000 MHz | 18 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800067 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 7 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800070 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 7 pF | +/-10 ppm | -20 to +70 °C |
| Q22FA12800085 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800089 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 8 pF | +/-30 ppm | -30 to +85 °C |
| Q22FA12800090 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800091 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 7 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA12800092 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800094 | 2 x 1.6 x 0.5mm | FA-128 | 40.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800099 | 2 x 1.6 x 0.5mm | FA-128 | 40.000000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| Q22FA12800100 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| Q22FA12800101 | 2 x 1.6 x 0.5mm | FA-128 | 40.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800105 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 12.5 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800107 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-50 ppm | -20 to +75 °C |
| Q22FA12800108 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 12 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800112 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-15 ppm | -20 to +75 °C |
| Q22FA12800114 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800116 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 12 pF | +/-15 ppm | -20 to +70 °C |
| Q22FA12800119 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 10 pF | +/-20 ppm | -20 to +75 °C |
| Q22FA12800120 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800121 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 15 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800125 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 6 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800126 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 8 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800127 | 2 x 1.6 x 0.5mm | FA-128 | 24.576000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800129 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 12 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800131 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800132 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 15 pF | +/-10 ppm | -20 to +70 °C |
| Q22FA12800135 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800137 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 9 pF | +/-20 ppm | -30 to +85 °C |
| Q22FA12800140 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800141 | 2 x 1.6 x 0.5mm | FA-128 | 20.000000 MHz | 10 pF | +/-10 ppm | -20 to +70 °C |
| Q22FA12800143 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 6 pF | +/-50 ppm | -30 to +85 °C |
| Q22FA12800145 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800146 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 7 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800147 | 2 x 1.6 x 0.5mm | FA-128 | 38.400000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800148 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| Q22FA12800149 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800150 | 2 x 1.6 x 0.5mm | FA-128晶振 | 48.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800152 | 2 x 1.6 x 0.5mm | FA-128 | 40.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800156 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 6 pF | +/-30 ppm | -30 to +85 °C |
| Q22FA12800158 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800159 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 12 pF | +/-27 ppm | -20 to +70 °C |
| Q22FA12800160 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 7 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800166 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800168 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 12.5 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800169 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 7 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800170 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800174 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-15 ppm | -30 to +85 °C |
| Q22FA12800182 | 2 x 1.6 x 0.5mm | FA-128 | 27.000000 MHz | 12 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800183 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800184 | 2 x 1.6 x 0.5mm | FA-128 | 27.120000 MHz | 10 pF | +/-30 ppm | -30 to +85 °C |
| Q22FA12800186 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 18 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA12800187 | 2 x 1.6 x 0.5mm | FA-128 | 48.000000 MHz | 16 pF | +/-30 ppm | -40 to +85 °C |
| Q22FA12800191 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| Q22FA12800197 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 7 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800201 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 18 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800202 | 2 x 1.6 x 0.5mm | FA-128 | 32.000000 MHz | 6.7 pF | +/-10 ppm | -20 to +75 °C |
| Q22FA12800213 | 2 x 1.6 x 0.5mm | FA-128 | 24.000000 MHz | 10 pF | +/-30 ppm | -40 to +85 °C |
| Q22FA12800214 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-30 ppm | -40 to +85 °C |
| Q22FA12800215 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800218 | 2 x 1.6 x 0.5mm | FA-128 | 30.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA12800219 | 2 x 1.6 x 0.5mm | FA-128 | 30.000000 MHz | 6 pF | +/-30 ppm | -30 to +85 °C |
| Q22FA12800222 | 2 x 1.6 x 0.5mm | FA-128 | 20.000000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| Q22FA12800225 | 2 x 1.6 x 0.5mm | FA-128 | 25.000000 MHz | 9 pF | +/-30 ppm | -30 to +85 °C |
| Q22FA12800226 | 2 x 1.6 x 0.5mm | FA-128 | 26.000000 MHz | 8 pF | +/-10 ppm | -40 to +85 °C |
