- 編號：83568094
- 頻率：28.63636MHz
- 尺寸：3.2*2.5mm

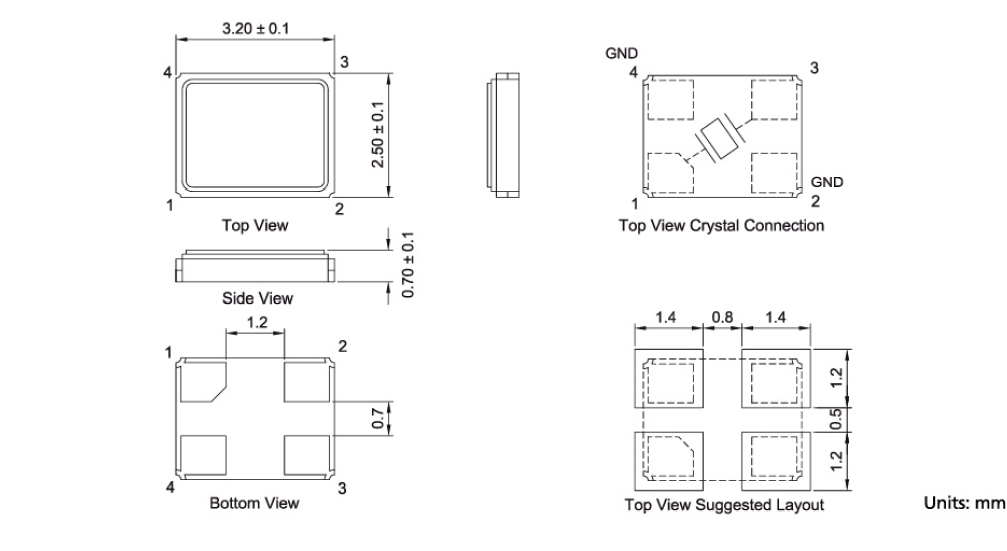

7M-28.63636MAHE-T,7M,3225mm
編碼為7M-28.63636MAHE-T的石英諧振器,型號為7M的3225mm石英晶振,3.2x2.5mm 貼片晶振在極端嚴酷的環境條件下也能發揮穩定的起振特性,本身具有耐熱,耐振,耐沖擊等優良的耐環境特性.
.jpg)
7M-28.63636MAHE-T,7M,3225mm,TXC晶振,無源石英晶振,石英諧振器,四腳貼片晶振,臺灣TXC晶振中編碼為7M-28.63636MAHE-T型號7M的無源晶振,尺寸為3225mm,頻率為28.63636MHz,高精度使她頻率偏差僅有±30ppm,3225貼片晶振是市場上最常用的封裝尺寸晶振,不論是無源晶振還是3225石英晶體振蕩器,均是被公認最適合在汽車電子上的產品,廣泛運用到數字手機晶振,汽車GPS晶振,空調晶振,平板電腦晶振,洗衣機晶振等行業
7M-28.63636MAHE-T,7M,3225mm,TXC晶振
| 原廠編碼 | 7M-28.63636MAHE-T |
| 頻率 | 28.63636MHz |
| 廠家 | TXC晶振 |
| 型號 | 7M |
| 頻率偏差 | ±30ppm |
| 負載電容 | 12pF |
| 工作溫度 | -40°C ~ 85°C |
| 電阻 | 60Ohm |
7M-28.63636MAHE-T,7M,3225mm,TXC晶振
.png)
格截圖(6).jpg)
| 7A-27.120MAAE-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAJ-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAAJ-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 18pF |
| 7A-8.000MAAJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.000MAAJ-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAJ-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.120MAAJ-T | TXC晶振 | 7A | 27.12MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.000MAHE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAJ-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 18pF |
| 7A-25.000MAAE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-10.000MAAE-T | TXC晶振 | 7A | 10MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAJ-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MAAJ-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 18pF |
| 7A-12.288MAAJ-T | TXC晶振 | 7A | 12.288MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAAJ-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 18pF |
| 7A-28.63636MAAJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-16.000MAHE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-48.000MAAJ-T | TXC晶振 | 7A | 48MHz | ±30ppm | ±30ppm | 18pF |
| 7A-27.000MAAJ-T | TXC晶振 | 7A | 27MHz | ±30ppm | ±30ppm | 18pF |
| 7A-26.000MAAJ-T | TXC晶振 | 7A | 26MHz | ±30ppm | ±30ppm | 18pF |
| 7A-20.000MAHE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-25.000MAHE-T | TXC晶振 | 7A | 25MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.7456MAAE-T | TXC晶振 | 7A | 14.7456MHz | ±30ppm | ±30ppm | 12pF |
| 7A-14.31818MAAE-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 12pF |
| 7A-24.000MAAE-T | TXC晶振 | 7A | 24MHz | ±30ppm | ±30ppm | 12pF |
| 7A-16.000MAAE-T | TXC晶振 | 7A | 16MHz | ±30ppm | ±30ppm | 12pF |
| 7A-20.000MAAE-T | TXC晶振 | 7A | 20MHz | ±30ppm | ±30ppm | 12pF |
| 7A-12.000MAAE-T | TXC晶振 | 7A | 12MHz | ±30ppm | ±30ppm | 12pF |
| 7A-22.1184MAAJ-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 18pF |
| 7A-29.4912MAAJ-T | TXC晶振 | 7A | 29.4912MHz | ±30ppm | ±30ppm | 18pF |
| 7A-30.000MAAJ-T | TXC晶振 | 7A | 30MHz | ±30ppm | ±30ppm | 18pF |
| 7A-14.31818MAAJ-T | TXC晶振 | 7A | 14.31818MHz | ±30ppm | ±30ppm | 18pF |
| 7A-49.152MAAJ-T | TXC晶振 | 7A | 49.152MHz | ±30ppm | ±30ppm | 18pF |
| 7A-24.576MAAJ-T | TXC晶振 | 7A | 24.576MHz | ±30ppm | ±30ppm | 18pF |
| 7A-18.432MBBK-T | TXC晶振 | 7A | 18.432MHz | ±50ppm | ±50ppm | 20pF |
| 7A-24.576MBBK-T | TXC晶振 | 7A | 24.576MHz | ±50ppm | ±50ppm | 20pF |
| 7A-28.63636MAHJ-T | TXC晶振 | 7A | 28.63636MHz | ±30ppm | ±30ppm | 18pF |
| 7A-33.3333MAAE-T | TXC晶振 | 7A | 33.3333MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.000MAHJ-T | TXC晶振 | 7A | 13MHz | ±30ppm | ±30ppm | 18pF |
| 7A-40.000MAHE-T | TXC晶振 | 7A | 40MHz | ±30ppm | ±30ppm | 12pF |
| 7A-18.432MAAE-T | TXC晶振 | 7A | 18.432MHz | ±30ppm | ±30ppm | 12pF |
| 7A-11.0592MAAE-T | TXC晶振 | 7A | 11.0592MHz | ±30ppm | ±30ppm | 12pF |
| 7A-8.000MAHJ-T | TXC晶振 | 7A | 8MHz | ±30ppm | ±30ppm | 18pF |
| 7A-22.1184MAAE-T | TXC晶振 | 7A | 22.1184MHz | ±30ppm | ±30ppm | 12pF |
| 7A-13.560MAAE-T | TXC晶振 | 7A | 13.56MHz | ±30ppm | ±30ppm | 12pF |
