靈活性超強的Cardina音叉晶體CX532Z-A2B3C5-70-20.0D18，Cardinal公司憑著自身的努力，實現了自我的價值，主要向廣泛的應用市場提供性能優越，成本低的SMD晶振和振蕩器，并為用戶提供一流的服務以及專業化的技術支持，同時通過發現用戶的需求，提供用戶需要的優質產品，以及幫助用戶找到適合自身的產品，同時站在用戶的角度出發設計更多理想的產品，我們的目標是貼近客戶。我們的目標是高效、創新和靈活地識別和響應客戶的需求。

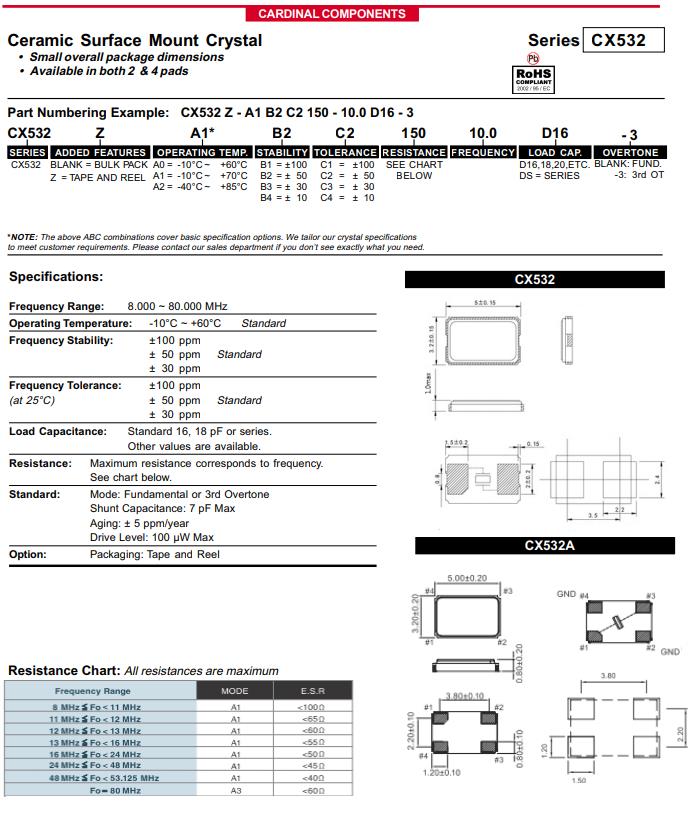

Cardinal公司很開心推出了優質產品編碼CX532Z-A2B3C5-70-20.0D18，型號CX532Z，尺寸為20.0000MHZ，負載電容18PF，頻率穩定度30ppm，SMD晶振，石英晶體諧振器，該產品是一款小體積，輕薄型，高質量，低損耗的無源晶振，采用尖端的生產技術制作而成，產品被廣泛應用于網絡設備，無線產品，智能家居，智能手機，儀器儀表等領域。

原廠編碼	廠家	參數	型號	頻率	頻率穩定度	電阻	工作溫度
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX5	27MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CRYSTAL 24.5760MHZ 18PF SMD	CX5	24.576MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	70 Ohm	-20°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CX5	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal SMD石英晶體	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	50 Ohm	-20°C ~ 70°C
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CX5	16MHz	±50ppm	50 Ohm	-10°C ~ 60°C
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-1966080D18	Cardinal晶振	CRYSTAL 19.6608MHZ 18PF SMD	CX532	19.6608MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-33.0D18	Cardinal晶振	CRYSTAL 33.0000MHZ 18PF SMD	CX532	33MHz	±30ppm	50 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A5B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	70 Ohm	-20°C ~ 70°C
CX532Z-A2B3C5-70-14.7456D18	Cardinal晶振	CRYSTAL 17.7456MHZ 18PF SMD	CX532	14.7456MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX532	12MHz	±30ppm	70 Ohm	-20°C ~ 70°C
CX532Z-A2B3C5-70-50.0D18	Cardinal晶振	CRYSTAL 50.0000MHZ 18PF SMD	CX532	50MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CRYSTAL 30.0000MHZ 18PF SMD	CX532	30MHz	±30ppm	50 Ohm	-40°C ~ 85°C
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CRYSTAL 27.0000MHZ 18PF SMD	CX532	27MHz	±30ppm	70 Ohm	-20°C ~ 70°C
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±50ppm	70 Ohm	-20°C ~ 70°C
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-20°C ~ 70°C
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CX532	20MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX5	8MHz	±50ppm	70 Ohm	-40°C ~ 85°C
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX5	25MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CX532	8MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CSM1Z-A0B2C3-70-14.7456D18	Cardinal晶振	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±50ppm	70 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-50-17.734475D18	Cardinal晶振	CRYSTAL 17.734475MHZ 18PF SMD	CSM1	17.734475MHz	±50ppm	50 Ohm	-10°C ~ 60°C
CSM1Z-A1B2C3-200-3.6864D20	Cardinal晶振	CRYSTAL 3.6864MHZ 20PF SMD	CSM1	3.6864MHz	±50ppm	200 Ohm	-10°C ~ 70°C
CSM1Z-A0B2C3-50-18.432D18	Cardinal晶振	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	50 Ohm	-10°C ~ 60°C
CSM1Z-A5B2C3-40-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A0B2C3-200-3.579545D18	Cardinal晶振	CRYSTAL 3.579545MHZ 18PF SMD	CSM1	3.579545MHz	±50ppm	200 Ohm	-10°C ~ 70°C
CSM1Z-A0B2C3-50-20.0D18	Cardinal晶振	CRYSTAL 20.0000MHZ 18PF SMD	CSM1	20MHz	±50ppm	50 Ohm	-10°C ~ 60°C
CSM1Z-A5B2C5-150-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A0B2C3-100-6.0D18	Cardinal晶振	CRYSTAL 6.0000MHZ 18PF SMD	CSM1	6MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1-A1B2C3-150-3.579545D17	Cardinal晶振	CRYSTAL 3.579545MHZ 17PF SMD	CSM1	3.579545MHz	±50ppm	150 Ohm	-10°C ~ 70°C
CSM1Z-A5B2C3-40-18.432D18	Cardinal晶振	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A1B2C3-40-24-0D12	Cardinal晶振	CRYSTAL 24.0000MHZ 12PF SMD	CSM1	24MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CSM1Z-A0B2C3-150-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-10°C ~ 60°C
CSM1Z-A5B2C3-150-4.0D20	Cardinal晶振	CRYSTAL 4.0000MHZ 20PF SMD	CSM1	4MHz	±50ppm	150 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C3-200-4.0D18	Cardinal晶振	CRYSTAL 4.0000MHZ 18PF SMD	CSM1	4MHz	±50ppm	200 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-50-19.6608D18	Cardinal晶振	CRYSTAL 19.6608MHZ 18PF SMD	CSM1	19.6608MHz	±50ppm	50 Ohm	-20°C ~ 70°C
CSM4Z-A2B3C3-40-14.7456D18	Cardinal晶振	CRYSTAL 14.7456MHZ 18PF SMD	CSM4	14.7456MHz	±30ppm	40 Ohm	-40°C ~ 85°C
CSM1Z-A5B2C5-40-16.0D18	Cardinal晶振	CRYSTAL 16.0000MHZ 18PF SMD	CSM1	16MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-25.0D18-F	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CSM1	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-18.432D18	Cardinal晶振	CRYSTAL 18.4320MHZ 18PF SMD	CSM1	18.432MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A5B2C5-40-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CSM1	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CSM1Z-A2B1C2-80-7.3728D33	Cardinal晶振	CRYSTAL 7.3728MHZ 33PF SMD	CSM1	7.3728MHz	±100ppm	80 Ohm	-40°C ~ 85°C
CPFBZ-A2C5-32.768D6	Cardinal晶振	CRYSTAL 32.7680KHZ 6PF SMD	CPFB	32.768kHz	-	50 kOhm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-40°C ~ 85°C
CX5Z-A5B2C5-40-12.0D18	Cardinal晶振	CRYSTAL 12.0000MHZ 18PF SMD	CX5	12MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CRYSTAL 10.0000MHZ 18PF SMD	CX5	10MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX5Z-A5B2C5-40-25D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX5	25MHz	±50ppm	40 Ohm	-20°C ~ 70°C
CX635BZ-A1B2C3-80-14.31818D20	Cardinal晶振	CRYSTAL 14.31818MHZ 20PF SMD	CX635B	14.31818MHz	±50ppm	40 Ohm	-10°C ~ 70°C
CX532Z-A5B3C5-70-18.432D18	Cardinal晶振	CRYSTAL 18.4320MHZ 18PF SMD	CX532	18.432MHz	±30ppm	70 Ohm	-20°C ~ 70°C
C49X-A3B1C1-40-8.0D16	Cardinal晶振	CRYSTAL 8.0000MHZ 16PF T/H	C49	8MHz	±100ppm	40 Ohm	-55°C ~ 125°C
CSM1Z-A0B2C3-100-40.0D18	Cardinal晶振	CRYSTAL 40.0000MHZ 18PF SMD	CSM1	40MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A0B2C3-100-49.152D18	Cardinal晶振	CRYSTAL 49.1520MHZ 18PF SMD	CSM1	49.152MHz	±50ppm	100 Ohm	-10°C ~ 60°C
CSM1Z-A2B4C7-60-24.0D18-F	Cardinal晶振	CRYSTAL 24.0000MHZ 18PF SMD	CSM1	24MHz	±10ppm	60 Ohm	-40°C ~ 85°C
CX532Z-A2B3C5-70-25.0D18	Cardinal晶振	CRYSTAL 25.0000MHZ 18PF SMD	CX532	25MHz	±30ppm	70 Ohm	-40°C ~ 85°C
CSM1Z-ARB2C5-60-8.0D18	Cardinal晶振	CRYSTAL 8.0000MHZ 18PF SMD	CSM1	8MHz	±50ppm	60 Ohm	-40°C ~ 125°C
CSM1Z-ARB3C3-50-14.7456D18	Cardinal晶振	CRYSTAL 14.7456MHZ 18PF SMD	CSM1	14.7456MHz	±30ppm	50 Ohm	-40°C ~ 125°C
CSM4Z-A2B3C3-40-33.0D18	Cardinal晶振	CRYSTAL 33.0000MHZ 18PF SMD	CSM4	33MHz	±30ppm	40 Ohm	-40°C ~ 85°C

靈活性超強的Cardina音叉晶體CX532Z-A2B3C5-70-20.0D18，通過 ISO-9001:2008 認證，Cardinal 致力于為我們的客戶提供最優質的石英晶振產品、技術支持和優質服務。我們的工程人員可以回答您的問題，并為新產品和現有產品提供設計幫助。我們提供靈活的交付計劃，例如JIT和訂單庫存，因此可以消除供應問題。
