愛普生通訊模塊專用有源晶振X1G004281006800，愛普生公司是日本晶振品牌知名企業，也是一家極其具有核心競爭力的頻率元器件制造商與供應商,主要向全球世界各地提供高精度的晶振產品,所生產的產品經過嚴格的生產體系制作而成，由于產品性能優越，質量有保障，贏得廣大用戶的支持與信賴,與此同時愛普生公司與廣大用戶建立密切的合作關系,于是形成用戶之間的轉介紹,使得愛普生公司在業界的知名度和好感度劇增,可謂無人不知,不人不曉,為愛普生未來的發展打下了牢固的地基,增添一抹亮麗的光彩，收獲了前程與美好的未來的愛普生公司不懈努力為用戶貢獻自身的最大化價值。

Product Number	進口晶振型號	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1G004281005800	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281005900	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006100	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006200	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006300	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006400	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006500	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006600	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006700	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006800	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281006900	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281007100	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281007200	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281007300	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281009600	SG7050VAN	148.350000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281010100	SG7050VAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004281010200	SG7050VAN	98.304000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281010300	SG7050VAN	80.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281010400	SG7050VAN	114.285000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281010500	SG7050VAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004281010600	SG7050VAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C

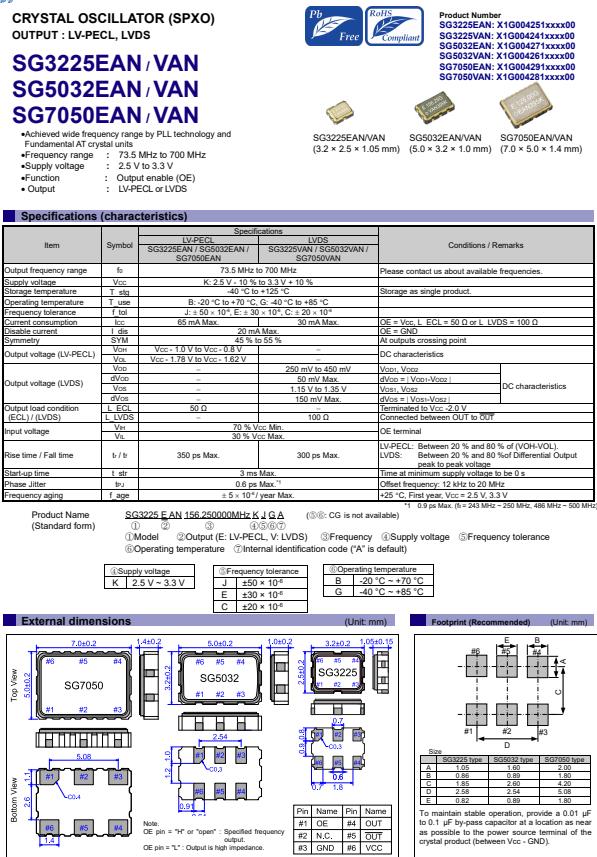

愛普生晶振公司推出了SG7050VAN晶振，編碼X1G004281006800，頻率75.000000兆赫，輸出WaveLVDS，供電電壓2.25至3.63 V，尺寸(長×寬×高)7.00 × 5.00 × 1.60毫米，工作溫度-20到+70°C，頻率公差±20ppm，額外的OptionsN /，具有非常高的穩定性,非常適用于對設計面積敏感的5G通信設備設備設計,SG7050VAN晶振是一款微型體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,也是5G通信設備時鐘的最佳之選.

愛普生通訊模塊專用有源晶振X1G004281006800，貼片式石英晶體振蕩器,低電壓啟動功率,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等,產品被廣泛應用于,平板筆記本,GPS系統,光纖通道,千兆以太網,串行ATA,串行連接SCSI,PCI-Express的SDH/SONET發射基站等領域.符合RoHS/無鉛
