- 編號：92395773
- 頻率：27MHZ
- 尺寸：3.2*2.5mm
大真空27MHZ晶體,1N227000BB0AK,DSX321G移動通信晶振
大真空27MHZ晶體,1N227000BB0AK,DSX321G移動通信晶振，尺寸3225mm,頻率27MHZ，負載電容11pF，精度12ppm，KDS進口晶振，大真空株式會社，大真空晶振，KDS無源晶振，四腳貼片晶振，無源晶振，無源貼片晶振，3225mm貼片晶...
大真空27MHZ晶體,1N227000BB0AK,DSX321G移動通信晶振，尺寸3225mm,頻率27MHZ，負載電容11pF，精度12ppm，KDS進口晶振，大真空株式會社，大真空晶振，KDS無源晶振，四腳貼片晶振，無源晶振，無源貼片晶振，3225mm貼片晶振，SMD晶振，水晶振動子，陶瓷諧振器，無源SMD晶振，SMD晶體諧振器，輕薄型晶振，無鉛環保晶振，27MHZ無源晶振，輕薄型晶振，移動通信設備晶振，小型設備晶振，平板電腦晶振，無線局域網晶振，車載無線晶振，藍牙晶振，低損耗晶振，低功耗晶振，高精度晶振，高可靠性晶振，高性能晶振，具有高可靠性能和高精度的的特點。
貼片無源晶振產品常用于通信設備、DVC、DSC、PC等小型設備，車載無線及無鑰匙入口，如藍牙、無線局域網、GPS/GNSS、安全裝置、多媒體設備等車載用途(符合AEC-Q200標準).大真空27MHZ晶體,1N227000BB0AK,DSX321G移動通信晶振.

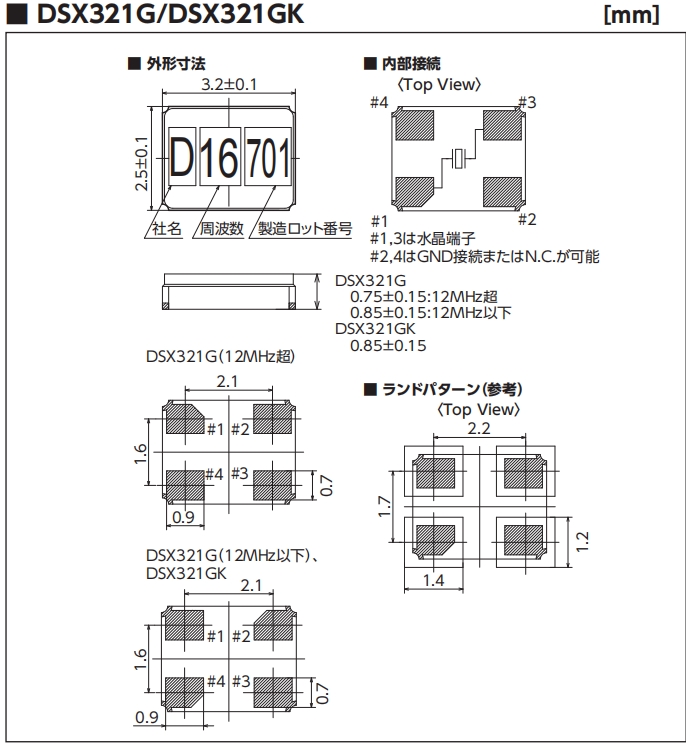

大真空27MHZ晶體,1N227000BB0AK,DSX321G移動通信晶振 參數表
| 型號名稱 | DSX321G | |||||
|---|---|---|---|---|---|---|
| 頻率范圍 | 12~20MHz | 27MHz | 27~64MHz | |||
| 泛音階 | 功能 | |||||
| 負載容量 | 11pF | |||||
| 激勵電平 | 10μW(200μW max.) | |||||
| 頻率允許偏差 | ±20×106( at 25℃) | |||||
| 串聯電阻 | 80ω最大。 | 60ω最大。 | 50ω最大。 | |||
| 頻率溫度特性 | ±30×106/−30~+85℃(Ref. to 25℃) | |||||
| 保存溫度范圍 | −40~+85℃ | |||||
| 包裝單位(1) | 3000pcs./reel(φ180 ) | |||||
大真空27MHZ晶體,1N227000BB0AK,DSX321G移動通信晶振
SMD晶振產品特性：
小型、薄型、輕量的表面安裝型石英振子厚度: 0.75mm (超過12 MHz )
符合AEC-Q200標準
| 品牌 | 原廠代碼 | 型號 | 尺寸 | 頻率 | 負載/電壓 | 精度 | 溫度 |
| KDS晶振 | 7AD00800A1C | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 1C208000CE0H | DSX321G | 3225 | 8.000M | 10PF | 20PPM | |
| KDS晶振 | 1C208000EE0BL | DSX321G | 3225 | 8.000M | 12PF | 20PPM | 40~125度 |
| KDS晶振 | 1ZCM080000EE0A汽車 | DSX320G | 3225 | 8.000M | 8PF | 20PPM | 40~85度 |
| KDS晶振 | 1C208000EZ0G汽車 | DSX321G | 3225 | 8.000M | 8PF | 30PPM | 40~85度 |
| KDS晶振 | 1N210000EE0X | DSX321G | 3225 | 10.000M | 10PF | ||
| KDS晶振 | 7AD01200A1R | DSX321G | 3225 | 12.000M | 8PF | 20ppm | |
| KDS晶振 | 1N212000BC0AK | DSX321G | 3225 | 12.000M | 10PF | 20ppm | |
| KDS晶振 | 1C213080CC0A | DSX321G | 3225 | 13.080M | 8PF | ||
| KDS晶振 | 1C232000ABOV | DSX321G | 3225 | 32.000M | 6PF | 10PPM | |
| KDS晶振 | 1N254000BB0M | DSX321G | 3225 | 54.000M | 19PF | 15PPM | |
| KDS晶振 | 1ZCM12000BC0A | DSX320G | 3225 | 12.000M | 8PF | ||
| KDS晶振 | 1C216000EE0AW | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1N216000EE0BE | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1C216000BF0B | DSX321G | 3225 | 16.000M | |||
| KDS晶振 | 1C319200AA0A | DSX321G | 3225 | 19.200M | 8PF | 10PPM | |
| KDS晶振 | 1C220000AA0K | DSX321G | 3225 | 20.000M | |||
| KDS晶振 | 1C224000BE0K | DSX321G | 3225 | 24.000M | |||
| KDS晶振 | 1N225000BC0CT | DSX321G | 3225 | 25.000M | 7.5PF | ||
| KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000M | 12.5PF | 10ppm | |
| KDS晶振 | 1N226000AA0E | DSX321G | 3225 | 26.000M | 8.1PF | 10PPM | |
| KDS晶振 | 1C214745CE0E | DSX321G | 3225 | 14.7456M | |||
| KDS晶振 | 1C224576AC0A | DSX321G | 3225 | 24.576M | |||
| KDS晶振 | 1N226000AB0M | DSX321G | 3225 | 26.000M | 8PF | 8PPM | |
| KDS晶振 | 1N226000AB0J | DSX321G | 3225 | 26.000M | 11PF | 10PPM | |
| KDS晶振 | 1C226000BE0D | DSX321G | 3225 | 26.000M | |||
| KDS晶振 | 1N227000AB0N | DSX321G | 3225 | 27.000M | |||
| KDS晶振 | 1C233333BC0G | DSX321G | 3225 | 33.333333M | |||
| KDS晶振 | 1N340000LA0B | DSX321G | 3225 | 40.000M | |||
| KDS晶振 | 1C340000LA0A | DSX321G | 3225 | 40.000M | 8PF | ||
| KDS晶振 | 1C262400BK0A | DSX321G | 3225 | 62.4M | |||
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1BASAMPLE | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1C227000BBAH | DSX321G | 3225 | 27.000M | 11PF | 12ppm | |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000M | 11PF | 12PPM | |
| KDS晶振 | 1C228322EE0D | DSX321G | 3225 | 28.322M | 10PF | 50PPM | |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000M | 10PF | 30PPM | |
| KDS晶振 | 1C338400AA0B | DSX321G | 3225 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6M | 10PF | 30PPM | |
| KDS晶振 | 1C254000CC0C | DSX321G | 3225 | 54.000M | 10PF | 30PPM | |
| KDS晶振 | 1N232000AA0N | DSX321G | 3225 | 32.000M | 12PF | ||
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000M | 15PF | 15PPM | 40~125度 |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000M | 10PF | 10PPM | |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000M | 10PF | 20ppm | |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000M | 8PF | 10ppm | |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864M | 8PF | 25PPM | |
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288M | 20PF | 30PPM | |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000M | 18PF | 50ppm | |
| KDS晶振 | 1CW04000KK3C | DSX151GAL | 11.8*5.5 | 4.000M | |||
| KDS晶振 | 1CW08192EK3A | DSX151GAL | 11.8*5.5 | 8.192M | 15PF | 20ppm | |
| KDS晶振 | CW08000EK3B | DSX151GAL | 11.8*5.5 | 8.000M | |||
| KDS晶振 | 1AJ039286A | SMD-49 | 3.928231M | ||||
| KDS晶振 | 1AJ040003DJ | SMD-49 | 4.000M | ||||
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332M | 12PF | 20PPM |
